Ngaphakathi kweDry Transformer Solid State High Frequency Welder

Le TENYES Inside Dry Transformer Solid State High Frequency Welder iklanyelwe ngokukhethekile ukushisela ipayipi lomthungo oqondile.

Yamukela izingxenye zamandla aphezulu ze-US IR IRFP460 MOSFET kanye ne-Germany IXYS Company DSEI60-06A i-diode yokutakula ngokushesha. I-capacitor yamandla aphezulu C kanye nekhoyili ye-inductor L ihlanganisa isekethe ye-resonance yemodi yamanje efana nephezulu-voltage, engadingi isiguquli esiphumayo. Ngakho-ke, akugcini nje ukuthuthukisa ukusebenza kahle, kodwa futhi kwandisa ukuthembeka kwe-welder.

I-TENYES SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder Isingeniso

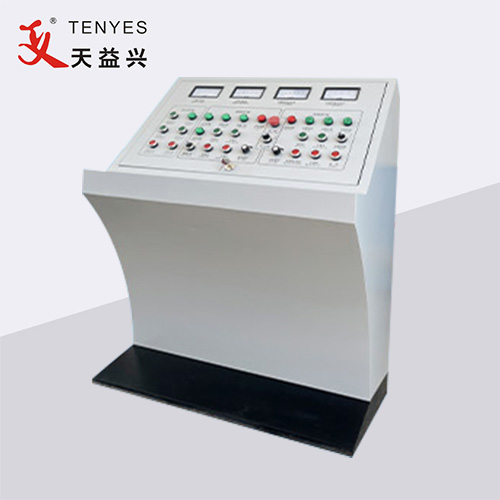

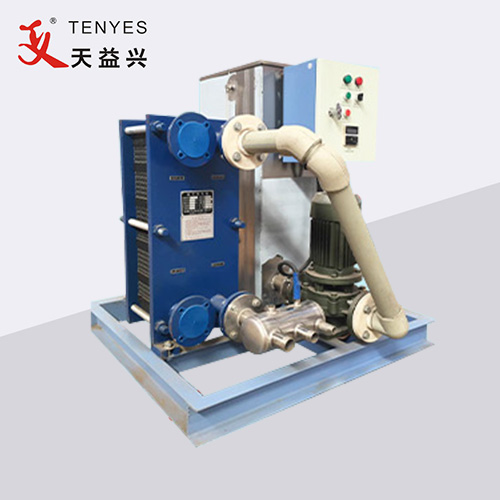

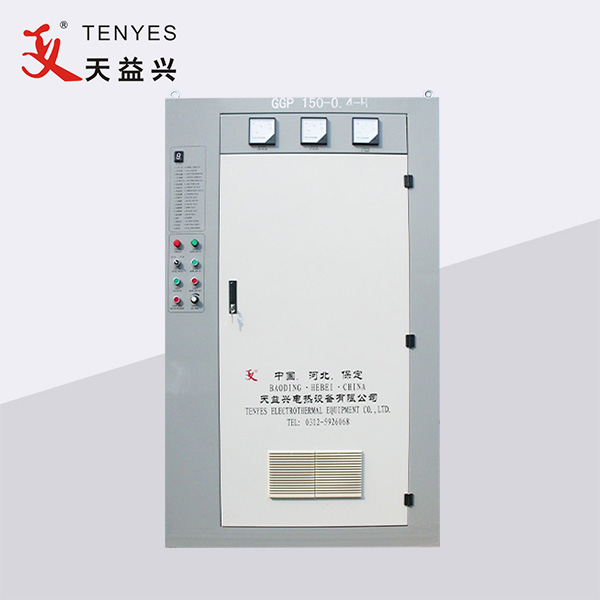

Le TENYES SCR Inside Dry Transformer Solid State High Frequency Welder iwumshini wokushisela amapayipi ozinzile kakhulu, kanti le welder inewaranti yonyaka owodwa. I-TENYES SCR Inside Dry Transformer Solid State High Frequency Welder ikakhulukazi iqukethe ikhabhinethi yokulungisa, ikhabhinethi ye-inverter (kuhlanganise ne-air conditioner), i-console, uhlelo lokupholisa kanye nesiguquli esisuka phansi. Samukela ubuchwepheshe bokulungisa i-SCR. Singakwazi ukwenza i-SCR Ngaphakathi Kwe-Dry Transformer Solid State High Frequency Welder isuka ku-50KW iye ku-1200KW.

I-TENYES SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder Parameter (Ukucaciswa)

I-TENYES SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder Isici kanye Nesicelo

I-Welder Scope yokusetshenziswa kwe-SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder:

Isetshenziselwa kakhulu ukushisela izinhlobo ezahlukene zamapayipi ensimbi e-longitudinal njengensimbi ephansi ye-carbon, insimbi enamandla amakhulu, insimbi ye-alloy, njll.

Izici ze-SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder:

1. Ayikho i-voltage ephezulu, ephephile, ethembekile futhi ephumelelayo.

2. Izingxenye eziyinhloko yimikhiqizo yomkhiqizo odumile wamazwe ngamazwe, njenge: IR, IXYS ne-Siemens, njll.

3. I-voltage kanye nesekethe yokulawula impendulo ephindwe kabili yamanje, ukulawulwa okuzinzile, ukunemba okuphezulu, ukuphazamiseka okuncane.

4. Uhla lwamandla alukwazi ukuguqulwa lusuka ku-0-100%, lune-over-voltage, over-current kanye nezinye izinhlelo zokuvikela amaphutha.

5. Isibonisi sesimo sokusebenza sidijithali, ukusebenza kulula, futhi ukugcinwa kulula.

6. Izinga lokushisela lihle, futhi ububanzi nokushisa kwe-weld kufana.

I-TENYES SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder Imininingwane

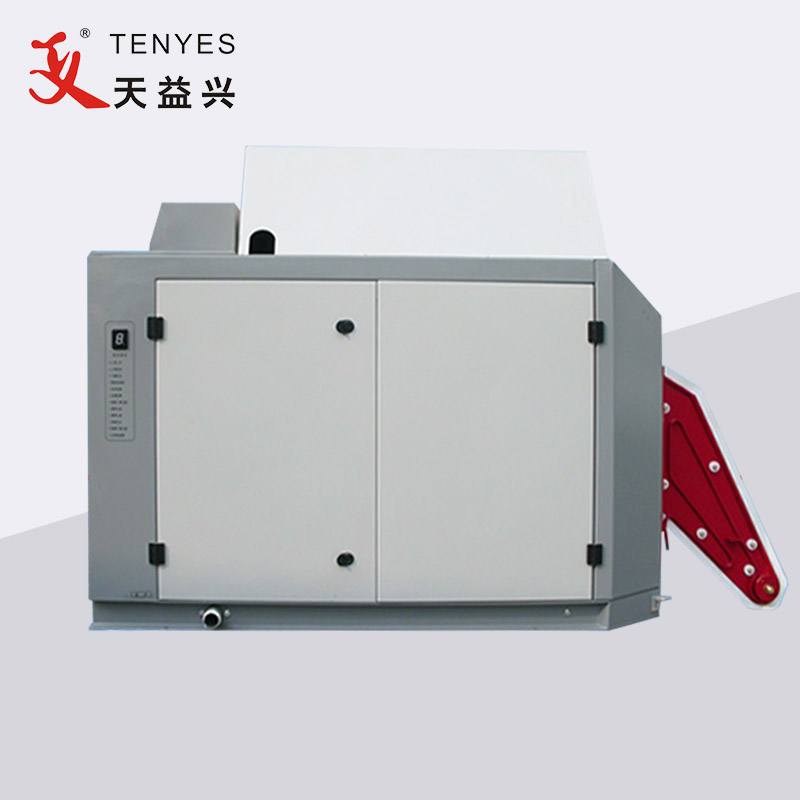

Umgomo oyisisekelo we-SCR Ngaphakathi kwe-Dry Transformer Solid State High Frequency Welder: ngemuva kokuthi ugesi ojwayelekile wezigaba ezintathu wehliswe phansi yi-transformer, ingena ekhabhinethi yokulungisa futhi ibe yamanje eguquguqukayo eqhubekayo ngemuva kokulungiswa, ukulawulwa kwamandla kagesi kanye nezixhumanisi zokuhlunga. ; Ibe ingena ebhulohweni le-inverter (ingxenye yamandla eyinhloko isebenzisa i-transistor yamandla aphezulu i-MOSFET) futhi ishintshela ku-high-frequency current, engasetshenziselwa ukushisa okungeniswayo ngokuhlinzeka nge-trough yokulayisha. Iyunithi yamandla e-inverter trough isebenzisa isakhiwo se-modular, ipheya ngalinye lamayunithi amandla lingakhipha ngaphezu kuka-50KW, futhi inani lamayunithi amandla asetshenzisiwe lihlukile kuye ngamandla emishini. I-trough isesimweni se-series-parallel mix resonance, ayikho i-voltage ephezulu, futhi ayikho i-transformer ephumayo.
