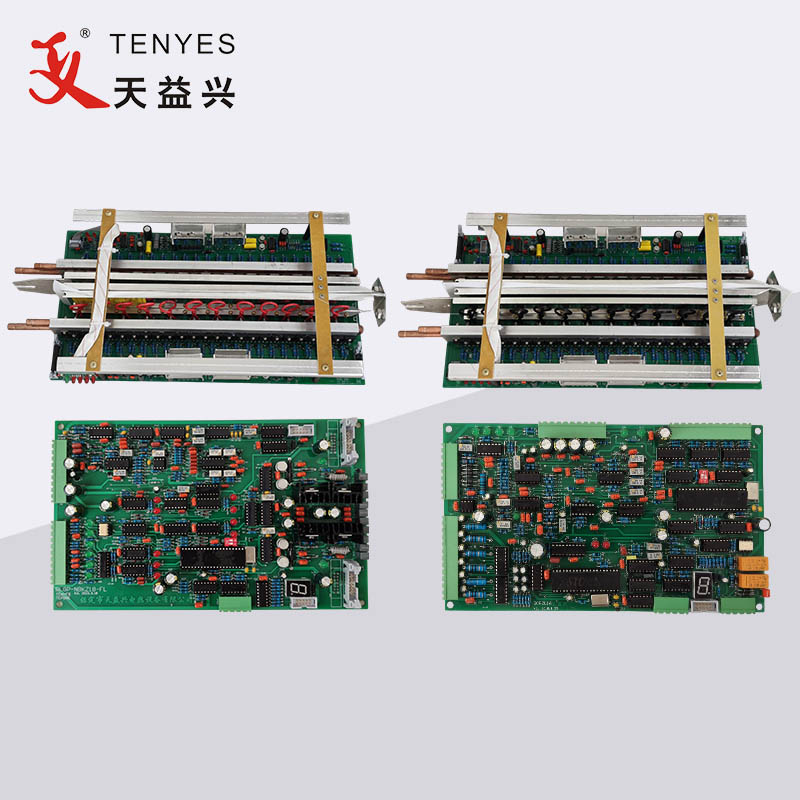

I-Solid State High Frequency Welder Circuit Boards

I-TENDES state solid state high frequency welder esetshenziselwa ikakhulukazi ukushisela amapayipi. Isethi yonke ye-welder ihlanganisa iKhabhinethi yokulungisa, iKhabhinethi ye-inverter (ikhabhinethi yesikhala), uhlelo lokupholisa olujikelezayo lwamanzi athambile, ikhonsoli yokulawula isikhungo, ibha yokuphumayo, uhlelo lokungeniswa / lokuxhumana, njalonjalo.

Izingxenye zekhabethe le-rectifier kanye ne-inverter zihlanganise izinhlobo eziningi zamabhodi wesekethe, amabhodi wesekethe ahlukene anemisebenzi ehlukene, kanye nezinye izingxenye ndawonye ukuze kugcinwe i-welder isebenza kahle. Nakuba sihlinzeka ngomklamo omuhle futhi sisebenzisa izingxenye zekhwalithi enhle, ngesikhathi sokushisela kuzolimaza amabhodi wesifunda seSolid High Frequency Welder ngenxa yezizathu ezahlukene.

Ngakho inkampani yethu ihlinzeka ngezinhlobo eziningi zamabhodi esekethe kumakhasimende, futhi uma kushintsha amabhodi amasha angagcina i-welder isebenza ngendlela evamile.

Amabhodi ashiwo ngezansi amanye amabhodi esekethe ayinhloko, uma ikhasimende linemibuzo yamabhodi wesifunda se-welder, sicela usithinte!

MOSFET amandla isikhunta ibhodi (positive)

MOSFET amandla isikhunta ibhodi (negative)

ibhodi lokulungisa

ibhodi lokulawula ledijithali

inverter control board

ibhodi lokubona amandla

ibhodi yomthombo wamandla we-inverter

Ibhodi lokusabalalisa amandla angu-4

Ibhodi lokusabalalisa amandla angu-6

ibhodi lokusabalalisa i-pulse

ibhodi lokushayela

Ibhodi lomthombo wamandla we-15V

ibhodi le-console

ibhodi lokulawula insimu

ibhodi ukulungisa isivinini

ukumelana-umthamo emunca ibhodi

Ibhodi lokuhlunga

ibhodi lempendulo yesignali
